Adaptive Windowing Scheme for DFT-Based Channel Estimation in ATSC 3.0 System

Ⅰ. Introduction

In wireless communications, transmitted signals are distorted by fading due to channel effects such as path loss, reflection, refraction, and delay spread in multipath channels^[1]. Signal distortion due to fading makes demodulation difficult, which leads to performance degradation. Therefore, accurate channel estimation is crucial for achieving optimal performance. Channel estimation can be conducted through blind channel estimation, which utilizes the statistical characteristics of the transmitted signal, or pilot-based channel estimation^[2][3]. Recently, many wireless communication systems have been designed based on orthogonal frequency division multiplexing (OFDM), and channel estimation has been performed using pilot symbols.

Most wireless communication systems, including fifth-generation new radio (5G NR) and Advanced Television Systems Committee (ATSC) 3.0, employ scattered pilots for channel estimation^[4][5]. Scattered pilots are inserted in regular patterns in the time-frequency domain, enabling least square (LS)-based channel estimation^[6]. The LS is performed to calculate the channel gain through transmitted and received pilot symbols. LS-based channel estimation is straightforward to implement. While LS estimation is computationally efficient, it is susceptible to errors caused by additive background noise. To reduce the channel estimation errors, minimum mean squared error (MMSE) channel estimation is commonly used^[7]. The MMSE channel estimation utilizes statistical characteristics, such as the covariance of channel gains and the covariance of noise, to mitigate channel estimation errors.

After estimating the channel gains corresponding to pilot symbols using the least square and MMSE channel estimations, the channel gain of data symbols can be obtained by interpolating the channel gains of the scattered pilots. The channel frequency response (CFR) can then be obtained from the channel gains of both pilot and data symbols. Linear interpolation is a well-known method with very low computational complexity, but it suffers from significant performance degradation^[8].

Discrete Fourier transform (DFT)-based channel estimation can be used to reduce channel estimation errors^[9]. Using the channel gains of pilot symbols, a channel impulse response (CIR) can be obtained through inverse discrete Fourier transform (IDFT). Then, unwanted components in the CIR caused by noise are suppressed with a windowing filter, and the filtered CIR is transformed into the CFR through DFT operation. The performance of the DFT-based channel estimation depends on how effectively unwanted components in the CIR are filtered, and many studies have been conducted to improve performance^[10-18]. However, in previous studies, filtering was performed using fixed values of design parameters, such as window size and threshold, leading to performance deterioration when the channel environment varied. Therefore, adaptive filtering is required to cope with various channel conditions.

In this paper, we propose an adaptive windowing scheme for DFT-based channel estimation in scattered pilot systems. In the proposed scheme, a given number of samples with the longest delays in the CIR are considered unwanted components caused by noise. The power of the undesirable components in the CIR is calculated and subtracted from the total power of the CIR. The remaining power can then be considered a multipath component, and windowing is performed based on the ratio of multipath components in the total CIR. Therefore, the window size is set adaptively depending on the channel condition.

The simulations are performed to evaluate the performance of the proposed scheme. In this paper, the Rayleigh 20-path (RL20) and the Typical Urban 6-path (TU-6) channels are considered as fixed and mobile reception environments^[22][23]. These channel models have been widely employed in studies that measured and analyzed reception performance in the ATSC 3.0-based Korean broadcasting system^[27][28]. In addition, a single frequency network (SFN) channel model built on measurements obtained from the operating network in the Seoul Metropolitan area is also considered^[29].

This paper consists of the following sections. In section 2, the system model of the received signal is briefly described. Section 3 introduces conventional DFT-based channel estimation schemes, and the proposed windowing scheme for DFT-based channel estimation is described in section 4. In section 5, simulation results compare the performance of the conventional and proposed schemes under varying channel conditions. Finally, this paper is concluded in section 6.

Ⅱ. System Model

In this section, the frame structure of a scattered pilot system and the received signal model are described. In this paper, the frame structure of the ATSC 3.0 standard is assumed as a scattered pilot system^[24-26].

1. Frame Structure of ATSC 3.0

The physical layer frame of ATSC 3.0 includes various pilots, such as preamble pilot, edge pilot, subframe boundary pilot, common continuous pilot, additional continuous pilot, and scattered pilot (SP). They are inserted into the frame according to the given rules and serve the purpose of channel estimation. Fig. 1 shows an example of the frame structure of ATSC 3.0 with pilots. Especially, the SPs are distributed across the time-frequency domain of the frame in a regular pattern. The configuration of SPs varies depending on the guard interval (GI) and fast Fourier transform (FFT) size and are denoted as SPD_x_D_y. Here, D_x and D_y represent the number of subcarriers between adjacent SPs in the frequency domain and the number of OFDM symbols forming one SP sequence, respectively. Channel estimation is performed by obtaining the channel gains of SPs and interpolating them to derive the channel gains of data symbols. However, the channel gains of data subcarriers at the edges of the time or frequency domain cannot be obtained solely through the interpolation of scattered pilots. To address this problem, the edge pilot and subframe boundary pilot are inserted to perform frequency and time interpolation at the edges.

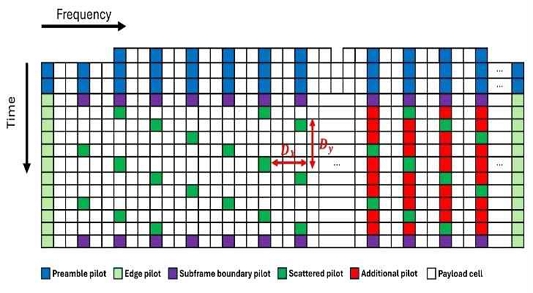

Fig. 1.

Frame Structure of ATSC 3.0 with pilots

Ⅲ. DFT-Based Channel Estimation

In this section, DFT-based channel estimation and its variated algorithms are described

1. DFT-Based Channel Estimation Algorithm

Fig. 2 shows the block diagram of DFT-based channel estimation. First, the least square is performed to obtain the channel gains of pilot subcarriers. The channel gains of the pilot subcarriers are obtained using transmitted and received pilots through the least square as follows

$\[ {\widehat{H}}_{LS}\left(p\right)=arg\underset{H_{LS}\left(p\right)}{\text{min}}{\left|Y\left(p\right)-X\left(p\right)H_{LS}\left(p\right)\right|}^2 \]$

(5)

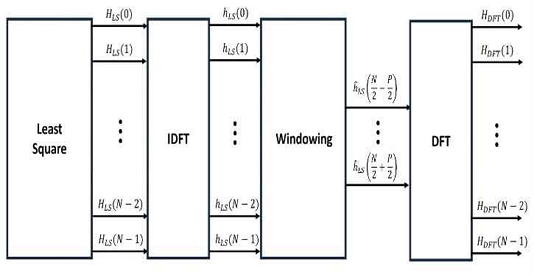

Fig. 2.

Block diagram of DFT-based channel estimation

where $$ {\widehat{H}}_{LS}\left(p\right)$$ denotes the channel gain of p-th pilot subcarrier. Since it is applied identically to all OFDM symbols, we omit the OFDM symbol index in the following formula for simplicity. To find the H_LS(p) that minimizes the equation $$ {\left|Y\left(p\right)-X\left(p\right)H_{LS}\left(p\right)\right|}^2$$, the partial derivative of the equation $$ {\left|Y\left(p\right)-X\left(p\right)H_{LS}\left(p\right)\right|}^2$$ is derived and represented as

$\[ \frac{\partial \left[{\left(Y\left(p\right)-X\left(p\right)H_{LS}\left(p\right)\right)}^H\left(Y\left(p\right)-X\left(p\right)H_{LS}\left(p\right)\right)\right]}{\partial H_{LS}\left(p\right)}=0 \]$

(6)

where the superscript H in the equation $$ {\left(Y\left(p\right)-X\left(p\right)H_{LS}\left(p\right)\right)}^H$$ denotes the Hermitian transpose. Then the solution of equation (6) is represented as

$\[ H_{LS}\left(p\right)=X{\left(p\right)}^{-1}Y\left(p\right)=H\left(p\right)+X{\left(p\right)}^{-1}W\left(p\right) \]$

(7)

After obtaining channel gains for pilot subcarriers, zero-padding is performed for the channel gains of data subcarriers, and then the IDFT is performed to obtain the CIR as follows

$\[ h_{LS}\left(n\right)=\frac{1}{N}\sum _{k=0}^{N-1}{H}_{LS}\left(k\right)e^{j\frac{2\pi }{N}nk} \]$

(8)

where h_LS(n) denotes the estimated CIR in the time domain.

The CIR represents the multipath profile of the channel. Since unwanted components can be induced by the noise, the channel estimation error can be reduced by rejecting unwanted components caused by the noise. To suppress unwanted components of the CIR, a windowing scheme can be applied. A straightforward windowing scheme is to eliminate the CIR components of the delay longer than the possible maximum delay of the channel. The maximum delay of the channel can be estimated by considering the multipath characteristics within the coverage area^[19]. Also, the scattered pilots are positioned at regular intervals in the frequency domain, exhibiting periodicity. A signal with periodicity in the frequency domain appears repeatedly in the time domain due to the properties of the Fourier transform^[20]. In ATSC 3.0 system, SPs are placed with a spacing of D_x in the time domain and D_y in the frequency domain. Therefore, the effective length of the CIR, P, can be represented as

$\[ P=\frac{N}{D_x{D}_y} \]$

(9)

Then, by taking the CIR of length P, the unwanted components caused by the noise can be eliminated, and can be represented as

$\[ {\widehat{h}}_{LS}\left(n\right)=\left\{\begin{array}{cc}{h}_{LS}\left(n\right),\hfill & \frac{N}{2}-\frac{P}{2}\le n\le \frac{N}{2}+\frac{P}{2}\\ 0,\hfill & otherwise\end{array}\right. \]$

(10)

After the windowing, the CIR is transformed to CFR through DFT and represented as

$\[ H_{DFT}\left(k\right)=\sum _{n=0}^{N-1}{\widehat{h}}_{LS}\left(n\right)e^{-j\frac{2\pi }{N}kn} \]$

(11)

Despite the windowing, since unwanted components caused by the noise may still exist, the channel estimation performance can be further improved by removing residual unwanted components within the window.

2. Conventional Post-Processing for DFT-Based Channel Estimation

Many studies have been conducted to eliminate unwanted components, and several schemes are introduced in this section. Fig. 3 shows the block diagram of conventional post-processing to eliminate residual unwanted components for DFT-based channel estimation.

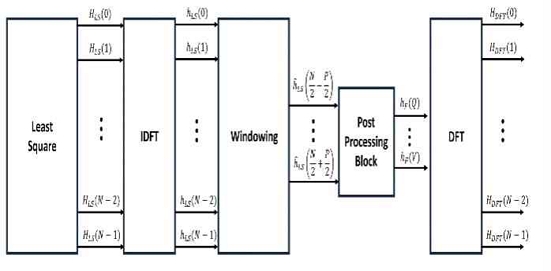

Fig. 3.

Block diagram of DFT-based channel estimation with post-processing block

2.1 Fixed Size Window Scheme

Wireless communication systems are designed to ensure the CIR can accommodate the maximum delay of the channel. Then, the maximum delay is estimated by considering the multipath characteristics within the coverage area. Therefore, a fixed size window can be set considering the maximum delay of the channel, allowing the elimination of unwanted components with delays longer than the window size^[10-13]. The fixed size window scheme can be represented as

$\[ h_F\left(n\right)=\left\{\begin{array}{cc}{\widehat{h}}_{LS}\left(n\right),\hfill & Q\le n\le V\hfill \\ 0,\hfill & otherwise\hfill \end{array}\right. \]$

(12)

where h_F(n) denotes CIR after post-processing. Also, Q and V denote the start and end indices of the window, respectively. Through the appropriate setting of a fixed-size window, unwanted components can be eliminated, improving channel estimation performance. However, as the actual multipath environment changes, there may be paths with longer delays than the set window. Paths with longer delays than the set window are ignored, which causes degradation in channel estimation performance.

2.2 Threshold Test Scheme

Using a fixed-size window, paths with longer delays than the window are ignored. Therefore, a threshold test can be employed to include the actual multipath components of the channel^[14-16]. A sufficient signal-to-noise ratio (SNR) must be ensured for reliable wireless communication, and under a high SNR condition, the power of desired components of the channel response will be greater than the unwanted components caused by the noise. Therefore, a threshold test can be used to consider components with high power due to multipath and utilize them for channel estimation. The threshold test scheme can be represented as

$\[ h_F\left(n\right)=\left\{\begin{array}{cc}{\widehat{h}}_{LS}\left(n\right),\hfill & \left|{\widehat{h}}_{LS}\left(n\right)\right|>Th\\ 0,\hfill & otherwise\end{array}\right. \]$

(13)

where Th denotes the threshold value. This approach effectively filters out noise-induced components while retaining significant multipath components, thereby improving channel estimation accuracy. However, if the SNR is not sufficiently ensured, the power of the desired components may not be guaranteed and may be ignored. Also, if the threshold value is too small, more unwanted components may be included.

2.3 Maximum Points Selection Scheme

When a sufficiently high SNR is ensured, the power of desired components is greater than those caused by the noise. Therefore, channel estimation can be performed instead of a threshold test using only a given number of the largest components in the CIR^[17]. This scheme, known as the maximum points selection scheme, involves sorting the CIR by magnitude and selecting only the pre-determined number of maximum points for channel estimation. Only multipath components can be utilized for channel estimation by appropriately setting the number of maximum points. However, some multipath components may be ignored if the number of maximum points is smaller than the number of multipaths.

In OFDM systems, zeros are padded at both ends of the bandwidth to prevent inter-channel interference (ICI), which is referred to as guard band (GB). The GB serves to limit bandwidth, and a bandwidth-limited signal appears to be spread out after IDFT due to the properties of the Fourier transform. The spreading of bandwidth-limited signals after IDFT is called a leakage effect. Fig. 4 illustrates an example of the leakage effect^[21]. In the maximum points selection scheme, the components are selected in descending order of magnitude, which may not include the dispersed components. To improve channel estimation performance, these dispersed components must also be incorporated into the channel estimation process.

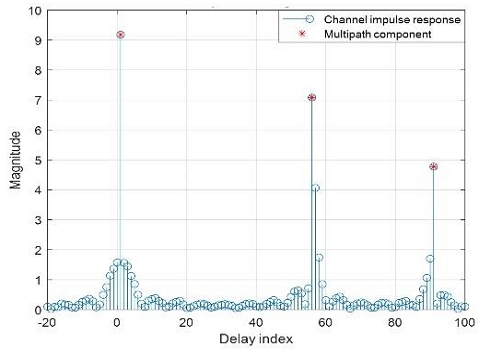

Fig. 4.

Example of leakage effect

2.4 Threshold-Based Window Size Setting Scheme

Windowing can be applied using a fixed window size to incorporate the dispersed components caused by the leakage effect in channel estimation. However, a fixed-size window may lead to performance degradation as the channel varies. Therefore, a scheme for adaptively adjusting the window size is needed to accommodate variations in the maximum delay of the channel.

To include the maximum delay of the channel, the window size can be set based on a threshold test^[18]. First, a threshold test is performed on the CIR to identify components that exceed the threshold. Then, the earliest and latest paths among the components exceeding the threshold are identified and designated as the most advanced and most delayed paths of the channel, respectively. Finally, the window size is set based on the component designated as the most advanced and most delayed path, and windowing is performed. The threshold-based window size setting scheme can be represented in the same way as equation (12), where Q and V denote the indices of the most advanced and most delayed paths, respectively. Note that if the threshold is not set appropriately, multipath components may be ignored or excessive unwanted components may be included, potentially leading to degradation in channel estimation performance.

Ⅳ. Proposed DFT-Based Channel Estimation Scheme

In the previous section, conventional DFT-based channel estimation schemes were introduced. They utilize fixed parameters such as window size and threshold to eliminate unwanted CIR components. However, filtering with fixed parameters may ignore multipath components as the channel condition changes, degrading channel estimation performance. Therefore, an adaptive windowing scheme is necessary to accommodate changes in the multipath environment.

In this section, a power calculation-based adaptive windowing scheme is proposed. Fig. 5 shows an example of the adaptive windowing scheme based on power calculation. We assume that the CIR obtained from DFT is long enough to include the maximum delay of the channel. Then, a part of the samples located at the edge of the CIR can be considered as unwanted components caused by noise rather than multipath components. Therefore, the average power of these samples is calculated as the average power of the components caused by noise, which can be represented as

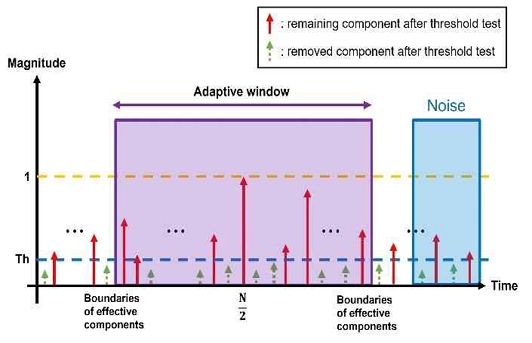

Fig. 5.

DFT-Based channel estimation with adaptive window based on power calculation

where σ² and k denote the average power of the unwanted components caused by noise and the number of samples used for calculating the average power of unwanted components. After calculating the average power of unwanted components, the average power of multipath components can be calculated by subtracting the average power of unwanted components from the average power of the CIR. If the average power of CIR is normalized to 1, the average power of the multipath components becomes 1 - σ². Using the average power of unwanted components, a threshold test is performed and can be represented as

where h_th(n) denotes CIR after threshold test. Components smaller than the threshold can be considered unwanted and eliminated through a threshold test. Subsequently, the remaining components undergo windowing. The window size for this process can be determined based on the power of the multipath components. The proposed scheme accumulates the power from the components with shorter delays and identifies the index at which the total accumulated power equals the calculated average power of the multipath components. Then, the identified index is set as the boundary of the window, and the windowing is then performed based on this boundary. The proposed scheme determines the window size by calculating the power of unwanted components, enabling adaptive windowing even when the multipath environment changes.

Ⅴ. Simulation Results

In this section, the performance of conventional and proposed DFT-based channel estimations is provided. Computer simulations were conducted using TU-6, RL20, and Seoul SFN 1 channels to evaluate the performance of both conventional and proposed schemes under varying multipath environments^[22][23][29]. The system parameters for computer simulations are described in Table 1.

Table 1.

System Parameters for computer simulations

The simulations assume perfect synchronization between the transmitter and receiver. The center frequency was set to 500 MHz within the ultra-high frequency (UHF) band used for terrestrial broadcasting in South Korea. The system bandwidth is set to 6 MHz, the service bandwidth used in terrestrial broadcasting. The pilot pattern was set with D_x = 4 and D_y = 2. The FFT size is set to 8192, and the interval of scattered pilots in the frequency domain is 8. Therefore, the effective length of the CIR is 1024.

First, computer simulations are conducted on the TU-6 channel to determine the optimal parameters for conventional schemes. Fig. 6 shows the block error rate (BLER) performance according to the window size for the fixed size window scheme in the TU-6 channel. The maximum delay of the TU-6 channel is 5us, corresponding to 35 samples in the simulation. The BLER performance degrades as the window size increases, with a window size of 50 outperforming the maximum delay of 35. This is due to the leakage effect, which disperses the multipath components into surrounding paths. Therefore, a margin was added beyond the maximum delay, and a window size of 50 was set as the optimal parameter.

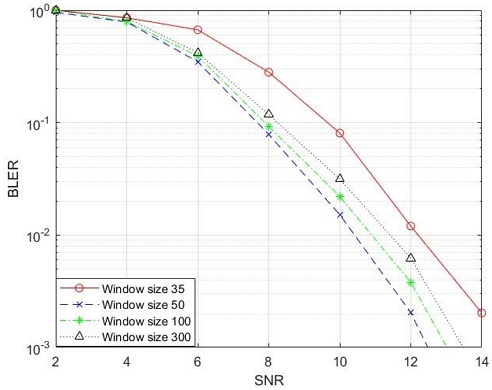

Fig. 6.

BLER performance according to the window size for the fixed size window scheme in TU-6 channel

Fig. 7 shows the BLER performance according to a threshold for the threshold test scheme in the TU-6 channel. In Fig. 7, the threshold value of 0.1 shows the best performance. Higher threshold values lead to more multipath components being ignored, while lower valuesresult in the inclusion of more unwanted components, both resulting in performance degradation. Therefore, the threshold value of 0.1 was selected as the optimal threshold.

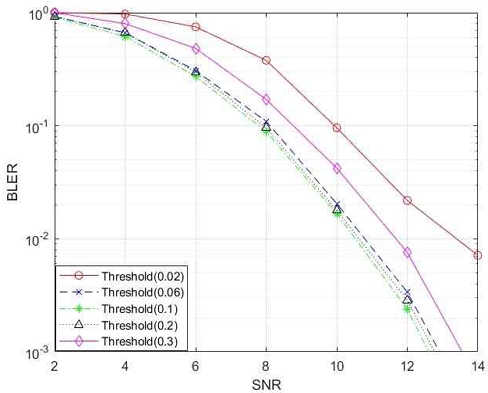

Fig. 7.

BLER performance according to the threshold for the threshold test scheme in TU-6 channel

Fig. 8 shows the BLER performance according to the number of maximum points for the maximum points selection scheme in the TU-6 channel. In Fig. 8, selecting 16 maximum points shows the best performance. Increasing the number of maximum points leads to the inclusion of more unwanted components, while decreasing maximum points results in ignored multipath components, both resulting in performance degradation. Therefore, 16 was set as the optimal number of maximum points.

Fig. 8.

BLER performance according to the number of maximum points for the maximum points selection scheme in TU-6 channel

Fig. 9 shows the BLER performance according to threshold-based window size for the threshold test scheme in the TU-6 channel. In Fig. 9, a threshold value of 0.2 shows a slight performance gain over 0.1 and 0.3. Similar to the threshold test, extreme threshold values may result in performance degradation. Therefore, 0.2 was set as the optimal threshold value.

Fig. 9.

BLER performance according to the threshold for threshold-based window size setting scheme in TU-6 channel

The optimal parameters of conventional schemes in the TU-6 channel are obtained through simulations. Fig. 10 shows the performance comparison of the DFT-based channel estimation schemes under the TU-6 channel. ‘Ideal’ represents the performance when all subcarriers within an OFDM symbol are used as pilots. The ‘No filtering’ represents windowing using the effective length of the CIR. The conventional schemes utilize pre-determined optimal parameters obtained through simulations. The ‘Proposed scheme’ represents the power calculation-based scheme that operates adaptively to channel variations. The ideal scheme shows the best performance, while no filtering shows the worst. The window size, threshold test, maximum points selection, threshold-based window size, and the proposed schemes show almost the same performance. This is because the conventional schemes use parameters optimized for the TU-6 channel, achieving the best performance.

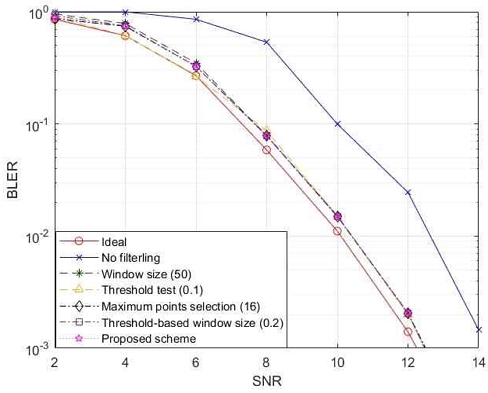

Fig. 10.

BLER performance of DFT-based channel estimation schemes in TU-6 channel

To evaluate the performance of each scheme under varied multipath environments, the same pre-determined parameters are applied to the RL20 channel. Fig. 11 shows the performance comparison of various DFT-based channel estimation schemes under the RL20 channel. When the determined optimal parameters for the TU-6 channel are applied to the RL20 channel, the performance in order from best to worst is ‘Ideal’, ‘Proposed scheme’, ‘Threshold-based window size’, ‘Window size’, ‘Threshold test’, ‘Maximum points selection’, and ‘No filtering’, from best to worst. This is because conventional schemes use fixed pre-determined parameter values regardless of the multipath environment. However, the proposed scheme adaptively performs windowing according to the channel environment, demonstrating superior performance in varying channel conditions.

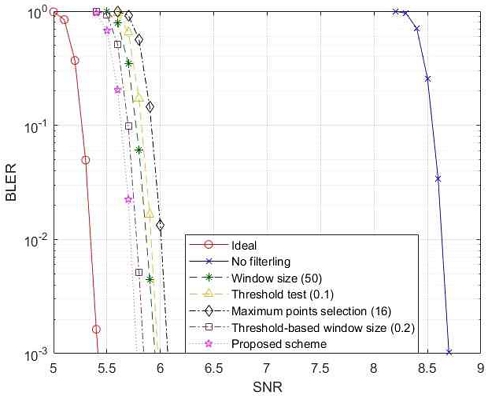

Fig. 11.

BLER performance of DFT-based channel estimations in RL20 channel

In addition, the performance of each scheme was evaluated in the Seoul SFN 1 channel environment using the same pre-determined parameters. Fig. 12 shows the performance comparison of various DFT-based channel estimation schemes under the Seoul SFN 1 channel. When the determined optimal parameters for the TU-6 channel are applied to the Seoul SFN 1 channel, the performance in order from best to worst is ‘Ideal’, ‘Proposed scheme’, ‘Threshold-based window size’, ‘Maximum points selection’, ‘Threshold test’, and ‘No filtering’, from best to worst. The ‘window size’ could not demodulate the signal. This is because it was configured to accommodate the short delays of the TU-6 channel and therefore could not include the longer delays in the Seoul SFN 1 channel. As in the case of the RL20 channel, the conventional schemes use fixed, pre-determined parameter values regardless of the multipath environment. Therefore, the proposed method demonstrates superior performance because it performs windowing adaptively according to the channel conditions.

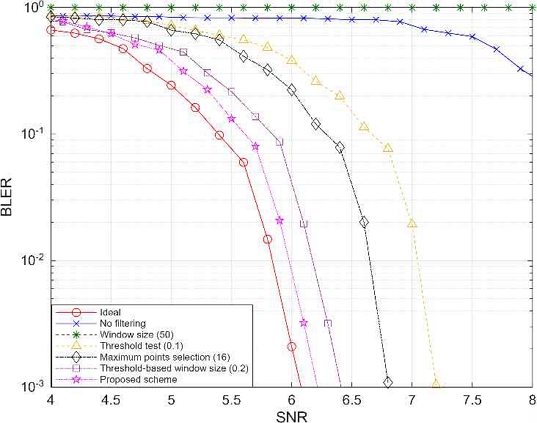

Fig. 12.

BLER performance of DFT-based channel estimations in Seoul SFN 1 channel

Ⅵ. Conclusion

In this paper, an adaptive windowing scheme for DFT-based channel estimation in scattered pilot was proposed. The proposed adaptive windowing scheme for DFT-based channel estimation can adaptively adjust the window size to channel variations. Simulations are performed under various channel environments based on the ATSC 3.0 standard adopted in the Korean broadcasting system. The simulation results show that the proposed scheme outperforms conventional schemes even in a multipath environment. Since conventional DFT-based channel estimation schemes use fixed pre-determined parameters regardless of the channel environment, the performance deteriorates when the channel condition varies. However, since the proposed scheme can adaptively adjust the window size according to the channel conditions, it can effectively adapt to channel variations.
